My Location Page:

TOUCH	RESULT
1 finger slide	Drag map. Turns off Auto-Center.
2 finger pinch	Zoom in or out.
2 taps inside map	Zoom in 2X. Center on tapped position if Auto-Center is Off.
2 taps outside map	Show new map for tapped position. Turns off Auto-Center.
3 taps	Return to original scale. Center on tapped position if Auto-Center is Off.
4 taps	Zoom out: view whole quad. Turns off Auto-Center.
5 taps	Total Reset:   Return to original scale.   Turn on Auto-Center.   Show Map for Current Location.
Tap “My Location” tab	Turn on Auto-Center. Show Map for Current Location.
Tap “Mark” button	Create a new Waypoint for where you are or any place on a map you are viewing.
Tap “Mark”, then tap Anywhere on the Map	Read the location coordinates for any point on the current map. Measure the distance and bearing from your current location to anywhere on the map.

Automatic Current-Location Centering:

AUTO - CENTER	RESULT
On	Current Location is kept centered on the screen. Switches maps while hiking.
Off	Map position stays fixed where you move it manually.
To turn On	Tap the “My Location” tab while the map is showing.
To turn Off	Drag the map.

Latitudes and longitudes in iHikeGPS NZ are in the New Zealand Geodetic Datum 2000 (NZGD2000), which works the same as the WGS 84 datum.

Change the units displayed in the Settings App.

Usual Top of My Location Page (#1*)

A “Go To” Waypoint or Route is Set (#2*)

* When a “Go To” waypoint or route is set, tap twice in the gray area of the bar to switch between (#1) and (#2).

When using a “Go To” waypoint or a route with waypoints, the Distance and Bearing are for the straight-line to the next waypoint. The ETA is to the next waypoint.

When using a route converted from a track log, the Distance is the distance along the route to the end of the route. The Bearing is the direction to the next point on the route. The ETA is to the end of the route.

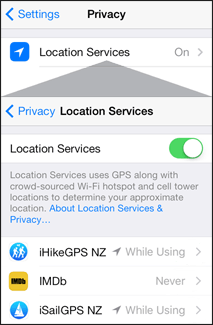

To use iHikeGPS NZ, “Location Services” must be on.

If you ever see “ Location Services Off in Settings App ” at the top of the My Location Page:

1. Start the Settings App.
2. Tap “Location Services”.
3. If Location Services is OFF, turn it ON.
4. Scroll Down to iHikeGPS NZ.
5. Turn the Switch ON.

Track Page:

When set to “Always”, iHikeGPS NZ drains the battery more quickly and continues to record a track for as long as iHikeGPS NZ remains in the Recents List.

TAP	RESULT
Share	Send a track in GPX format, or send your current location. Email queued in your out box. Sent when the Internet connects.
Trash	Delete the entire track from the iOS device and from the iCloud backup.
2 taps	Show the last track section only.
3 taps	Return to original display.

Using Tracks:

HOW TO	DO THIS
Email track	Tap “Share”, then Email Track.
Save track	Tap “Share”, then Send Track via iTunes to save a GPX file to “ iHikeGPS NZ Documents”. Access in iTunes.
Unclutter screen	Manually: Delete past tracks.
	Auto-Delete: After 4000 track points, the oldest track points are replaced with new ones.
Record an accurate elevation profile	Start iHikeGPS NZ with a clear view of the sky. Wait a few minutes for a lock on all satellites (indicated accuracy less than 16 m). Tap “Record Track: Always”. Go!
	Tap “Record Track: Off” before you stop iHikeGPS NZ at the end of the hike.

Track Gaps:

When It Happens	Lose GPS Satellite reception. Switch to Airplane Mode. Set “Record Track” to Off. With “Record Track” Set to When Live        The iOS device goes to sleep.        You switch to another App. With “Record Track” Set to Always        You remove iHikeGPS NZ from the Recents List.        iHikeGPS NZ stops because iOS needs the memory for another App.
Indication	No track on the map. Dotted blue vertical lines on the elevation profile graph.
Result	The distance traveled during a gap will not be shown on the elevation profile graph.

Waypoints Page:

Waypoint Coordinates in iHikeGPS NZ are in the New Zealand Geodetic Datum 2000 (NZGD2000), which works the same as the WGS 84 datum.

TAP	RESULT
+ button	Add a new waypoint.
Share	Send as a GPX file. Email queued in your out box. Sent when Internet connects.
A waypoint name	View, Edit, Delete, Go To, or Cancel Go To that waypoint.
Delete All	Clear all waypoints from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.

A maximum of 4000 waypoints can be stored.

Using Waypoints:

HOW TO	DO THIS
Add a waypoint on the My Location page	Tap “Mark” to create a waypoint for your current location or anywhere on the current map. Name your waypoint using letters, numbers & spaces. Tap “Done” at the top.
Add a waypoint on the Waypoints page Using Latitude and Longitude	Tap “+”. Tap “Latitude & Longitude”. Name your waypoint using letters, numbers & spaces. Enter latitude & longitude.   To find coordinates, look up the site's name on Wikipedia.   In New Zealand, enter a minus sign in front of latitude numbers. Tap “Done” at the top.
Add a waypoint on the Waypoints page Using a Geotagged Photo from your Photo Library	Tap “+”. Tap “A Geotagged Photo”. Tap the thumbnail image of the photo. Name your waypoint using letters, numbers & spaces. Tap “Done” at the top.
Add waypoint(s) by importing a GPX or LOC waypoints file to your iOS device from another device	Use email
	Use iTunes
	Use Dropbox
Edit a waypoint	Tap the waypoint name. Tap Edit. Make your changes. Tap “Done” at the top.
Delete a waypoint	Tap the waypoint name. Tap the “Delete” button.       OR Swipe waypoint name left or right. Tap the “Delete” button.
Delete ALL waypoints	Create a backup by emailing the waypoints to yourself. Scroll to the bottom of the page. Tap the “Delete All” button. Confirm by tapping Delete ALL Waypoints.
View a waypoint on a map	Tap the waypoint name. Tap View On A Map.
View the distance between 2 waypoints	Tap the “Routes” tab. Tap + Tap “Waypoints”. Tap the name of the 1st waypoint. Tap the + button. Tap “After this Waypoint”. Tap the name of the 2nd waypoint. Read the distance. Tap “Delete Route” when you are done.
Email all waypoints	Tap “Share”, then tap Email All Waypoints.
Email one waypoint	Tap the Waypoint you want to send. Tap “Go To”. Return to the main Waypoints page. Tap “Share”, then tap Email “Go To” Waypoint. Tap the Waypoint again. Tap “Cancel Go To”.
Save waypoints	Tap “Share”, then Send Waypoints via iTunes to save a GPX file to “ iHikeGPS NZ Documents”. Access in iTunes.

Using “Go To” Waypoints:

A “Go To” Waypoint is a waypoint indicating your planned destination. It can be either the final destination of your hike or some important place along your way.

HOW TO	DO THIS
Set a “Go To” waypoint	Add the waypoint if it is not already on the list. Tap the Waypoint Name. Tap the “Go To” button.
Clear a “Go To” waypoint	Tap the name of the “Go To” Waypoint (shown in green). Tap the “Cancel Go To” button.

After setting a “Go To” waypoint on the Waypoints page, the top bar of the “My Location” page looks like this: The Estimated Time of Arrival is recalculated every few seconds, based on the trail just traveled since the “Go To” waypoint was set, and assuming that the trail ahead is similar in twistiness, steepness, and direction. The ETA will not appear until you have hiked a couple of minutes with track recording turned on, so your speed can be more accurately determined.

The elevation difference will be shown only if the “Go To” waypoint has an altitude entry.

If your iOS device does not have a built-in compass or your speed exceeds 20 miles per hour, then the Course (the direction you are moving) will be shown instead of the compass reading.

Routes Page:

Route point coordinates in iHikeGPS NZ are in the New Zealand Geodetic Datum 2000 (NZGD2000), which works the same as the WGS 84 datum.

SYMBOL	TYPE OF ROUTE
	Route Made with Waypoints
	Route Converted from a Track Log
	Route Converted from a Segmented Track Log

TAP	RESULT
+ button	Add a new route.
Share	Send selected route as a GPX file. Email queued in your out box. Sent when Internet connects.
Don't Show a Route	No route is shown on the “My Location” map.
A route name	Select that route to view. Only the selected route is shown on the “My Location” map
	Edit or navigate that route.
Delete All	Clear all routes from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.

A maximum of 200 routes can be stored.
Each route can have up to 100 named route waypoints or 4000 unnamed route points.

Using Routes:

HOW TO	DO THIS
Add a new Route using existing waypoints	Tap “+”. Tap “Waypoints”. Tap the name of the waypoint where your route will start. Tap “+” on the first route waypoint line. Tap “After this Waypoint”. Tap the name of the second waypoint on your route. Continue adding waypoints until the route is finished. Name your route using letters, numbers & spaces. Add a Note (optional). Tap “Done” at the top.
Add a new Route by converting the current track into a route	Tap “+”. Tap “Current Track”. Tap “Edit”. Name your route using letters, numbers & spaces. Add a Note (optional). Tap “Done” at the top.
Add new Route(s) by importing a GPX or LOC route or track file to your iOS device from another device	Use email
	Use iTunes
	Use Dropbox
Navigate a route	Tap for that route. Tap Navigate Forward or Navigate Reverse
Delete a route	Tap for that route. Tap the “Delete Route” button.       OR Swipe route name left or right. Tap the “Delete” button.
Delete ALL routes	Create a backup by emailing each route to yourself. Scroll to the bottom of the page. Tap the “Delete All” button. Confirm by tapping Delete ALL Routes.
View a route on a map	Tap for that route. Tap View On A Map.
Email a route	Tap the Route you want to send. Tap “Share”. Tap Email Selected Route.
Save a Route	Tap the Route you want to save. Tap “Share”. Tap Send Route via iTunes to save a GPX file to “ iHikeGPS NZ Documents”. Access in iTunes.
Edit a route	Tap for that route. Tap “Edit”. Make your changes. Tap “Done” at the top.

Editing Routes:

  Route with Waypoints

Route waypoint names are shown in Italics  to distinguish them from regular waypoints.

Before Tapping Edit

TAP	RESULT
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the start of the route.
Navigate Forward	Start at route waypoint 1. Automatically “Go To” each waypoint in order.
Navigate Reverse	Start at the last waypoint. Automatically “Go To” each waypoint in reverse order.
A waypoint name (when navigating)	Manually make this waypoint the “Go To” waypoint.
Cancel Forward  or  Cancel Reverse	Stop the currently active navigation.
Swipe waypoint name left or right	Delete that waypoint from the route.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.
Routes	Return to the Routes page.
Edit	Edit the Route.

After Tapping Edit

TAP	RESULT
Name text	Edit the route name.
Note text	Edit the route note.
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the start of the route.
	Insert a waypoint before or after this waypoint.
A waypoint name	Edit the waypoint name, note, location and altitude, or delete the waypoint from the route.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.
Cancel	Keep the route as it was with no changes.
Done	Save changes to the route.

If a route waypoint is identical to a regular waypoint, then they are linked so that only one of them shows on the chart. You can break the link by:

• Editing the route waypoint when that route is selected or
• Editing the regular waypoint when the route containing the route waypoint is not selected.

Deleting one of the linked waypoints will not delete the other.

  Route Converted from a Track Log

Before Tapping Edit

TAP	RESULT
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the start of the route.
Navigate Forward	Follow the route from start to finish.
Navigate Reverse	Follow the route in the opposite direction
Cancel Forward  or  Cancel Reverse	Stop the currently active navigation.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Routes	Return to the Routes page.
Edit	Edit the Route.

After Tapping Edit

TAP	RESULT
Name text	Edit the route name.
Note text	Edit the route note.
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the start of the route.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Cancel	Keep the route as it was with no changes.
Done	Save changes to the route.

  Route Converted from a Segmented Track Log

Before Tapping Edit

TAP	RESULT
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the first visible route section.
Navigate Forward	Start at the beginning of the first route section. Follow the route to the end of the last section, including gaps.
Navigate Reverse	Start at the end of the last route section. Follow the route to the beginning of the first route section, including gaps.
Cancel Forward  or  Cancel Reverse	Stop the currently active navigation.
Swipe a route Section left or right	Delete that route Section from the route.
Swipe a Gap left or right	Delete the Gap to join the two adjacent route Sections together.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.
Routes	Return to the Routes page.
Edit	Edit the Route.

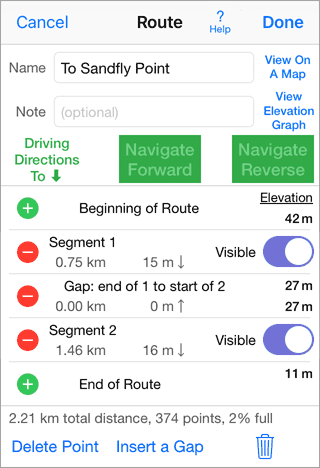

After Tapping Edit

TAP	RESULT
Name text	Edit the route name.
Note text	Edit the route note.
Visible Switch	Hide or Show that route Section on the “My Location” map.
View On A Map	Picks the correct already-downloaded map. Switches to the “My Location” page. Shows the first visible route section.
for a Section	Delete that route Section from the route.
for a Gap	Delete the Gap to join the two adjacent route Sections together.
Delete Route	Clear the whole route from the iOS device and from the iCloud backup.
Status bar	Jump to the top of the list.
Cancel	Keep the route as it was with no changes.
Done	Save changes to the route.

Map List Page:

To add a new map to your iOS device's memory, you must have a WiFi connection or cell service.

After tapping the + button in the top bar of the Map List page:

TAP	TO DOWNLOAD A MAP
Current Location	For where you are. Then tap “Add NZ Topo Map”.
Relative to Current Map	North, South, East, or West of the map currently showing on the “My Location” page.
On-Map Locator *	Find the place you want on a Google map.
Place Name or Map Name	Search for Latitude and Longitude by:     Topo map name     City     Address     Geographic feature
Latitude & Longitude	In New Zealand, use a minus sign in front of latitude numbers.

The map list shows the Land Information New Zealand topo maps that you have downloaded to the iOS device's memory from the iHikeGPS NZ server.

* The On-Map Locator also shows the border lines of your already-downloaded topo maps:

If you have trouble finding the correct map, try these web sites:

WEBSITE	TO FIND
www.linz.govt.nz/sheets	List of all 50K topo maps. Scroll down on the page to see the list.
www.linz.govt.nz/map-chooser	Index Map for the North and South islands. Click a 250K area to see the 50K maps.
www.linz.govt.nz/nz-offshore-island	The Offshore Islands. Scroll down on the page.

On the Map List page:

TAP	RESULT
Edit button	Choose map(s) to delete from the iOS device.
Don't Show a Topo Map	Show Track, Waypoints, Routes and Current Location on a white background.
LINZ 50K Map for Current Location	Switches LINZ 50K maps as you travel to always show your current position.
A map name	Select that map to view.
Search Bar	Find an already-downloaded map by map name or by latitude and longitude.
Cancel	Stop search, remove on-screen keyboard.
Status bar	Jump to top of the list.

There are 2 ways to choose which already-downloaded map is shown on your “My Location” page:

• On the Map List page, tap a map name. A checkmark ✔ indicates your selection. View the map on the My Location page.
• On the Map List page, tap “LINZ 50K Map for Current Location”. The program will choose the correct map for your location from your downloaded maps. The name of the chosen map will appear in bold text. View on the My Location page.

Maps Available within iHikeGPS NZ:

The New Zealand North and South Islands:
Land Information New Zealand (LINZ) 50K maps are available for everywhere.

The Offshore Islands:
LINZ maps are also available for Antipodes Island Group, Auckland Islands, Bounty Islands, Campbell Island/Motu Ihupuku, Chatham Islands, Kermadec Islands, and Snares Islands/Tini Heke. These are 50K maps for the larger islands and 25K maps for the smaller ones.

You can store a few maps or maps for the entire country in the iOS device's memory.

Map Legend:

Import:

Use email, iTunes, or Dropbox.

Email Tracks, Waypoints and Routes To iHikeGPS NZ:

1. Create an email with a GPX or LOC file attachment on another device.
2. Send it to your iOS device's email address.
3. Open it in Mail :

4. Press and hold your finger on the attachment icon until these buttons appear.

5. Tap: Open in “iHikeGPS NZ”.

Tab-bar icon badges show the number of new waypoints and/or routes imported.

The Waypoints page shows the newly imported waypoints.

If the imported file contains a waypoint with a different location but the same name as an existing waypoint, then the new waypoint will be renamed rather than overwriting the existing waypoint. For example a waypoint with a duplicate name of “Campsite” would be renamed “Campsite01”.

The Routes page shows the newly imported tracks and routes.

If the imported file contains a route or a track with the same name as an existing route, the new route will be renamed rather than overwriting the existing route. For example a route with a duplicate name of “Routeburn Track” would be renamed “Routeburn Track01”.

Use iTunes to Send Tracks, Waypoints and Routes To iHikeGPS NZ:

1. Connect the iOS device to your computer.
2. Start iTunes on your computer.
3. Select your iOS device in the left column.

4. Click “Apps” in the top bar.

5. Scroll down the page. Under “File Sharing”, click “iHikeGPS NZ”.

6. To the right, under “ iHikeGPS NZ Documents”, click .
7. Select a GPX or LOC file which is under 5 MBytes in size, then click .
8. Start iHikeGPS NZ on your iOS device.

Tab-bar icon badges show the number of new waypoints and/or routes imported.

The Waypoints page shows the newly imported waypoints.

If the imported file contains a waypoint with a different location but the same name as an existing waypoint, then the new waypoint will be renamed rather than overwriting the existing waypoint. For example a waypoint with a duplicate name of “Campsite” would be renamed “Campsite01”.

The Routes page shows the newly imported tracks and routes.

If the imported file contains a route or a track with the same name as an existing route, the new route will be renamed rather than overwriting the existing route. For example a route with a duplicate name of “Routeburn Track” would be renamed “Routeburn Track01”.

Use Dropbox to Send Tracks, Waypoints and Routes To iHikeGPS NZ:

1. Install Dropbox on the computer that contains the file.
2. Transfer the GPX or LOC file to this Dropbox.
3. Install the free Dropbox App on your iOS device.
4. Tap the Dropbox App icon.
5. Tap the desired file.

6. Tap the “Share” icon.
7. Tap “iHikeGPS NZ”.

Tab-bar icon badges show the number of new waypoints and/or routes imported.

The Waypoints page shows the newly imported waypoints.

If the imported file contains a waypoint with a different location but the same name as an existing waypoint, then the new waypoint will be renamed rather than overwriting the existing waypoint. For example a waypoint with a duplicate name of “Campsite” would be renamed “Campsite01”.

The Routes page shows the newly imported tracks and routes.

If the imported file contains a route or a track with the same name as an existing route, the new route will be renamed rather than overwriting the existing route. For example a route with a duplicate name of “Routeburn Track” would be renamed “Routeburn Track01”.

Export:

Use email or iTunes.

Email Tracks, Waypoints or Routes From iHikeGPS NZ:

1. Tap , or .
2. Tap .
3. Tap or
   Tap or
   Tap or
   Tap .
4. Enter an email address in the To: area.
5. Optionally change the Subject and the body of the email.
6. Tap .

Send Tracks, Waypoints or Routes From iHikeGPS NZ through iTunes:

1. Tap , or .
2. Tap .
3. Tap or
   Tap or
   Tap .
4. Connect the iOS device to your computer.
5. Start iTunes on your computer.
6. Select your iOS device in the left column.

7. Click “Apps” in the top bar.

8. Scroll down the page. Under “File Sharing”, click “iHikeGPS NZ”.

9. To the right, select a GPX file.

10. Click .
11. Select a folder, then click .
12. Open the GPX file using the mapping program of your choice, such as MacGPS Pro on the Mac or OziExplorer on Windows.
13. To remove a file from “ iHikeGPS NZ Documents”, select it, then push the “delete” key.

Choose your Settings for iHikeGPS NZ:

Start the Settings App.
Scroll down to iHikeGPS NZ. Tap it.

OPTION	AVAILABLE SETTINGS
Auto-Lock	ON *      Use the system Auto-Lock setting. OFF       Never Auto-Lock.
Proximity Sensor †	ON        Turn off the screen when near an object. OFF *    Don't use the Proximity Sensor.
Position Format	ddd.ddddd° *      Degrees ddd°mm.mm'     Degrees Minutes ddd°mm'ss.s"     Degrees Minutes Seconds UTM / UPS         Grid Coordinate System TM 2000             NZ Grid Coordinate System
Distance Units	statute miles         speed: miles per hour nautical miles       speed: knots kilometers *           speed: km per hour
Elevation Units	feet meters *
Direction Units ⊥	° True *              Degrees clockwise from True North ° Magnetic       Degrees clockwise from Magnetic Compass North
Show Waypoint Notes	ON *     Waypoint Notes overlaid on the map. OFF     Waypoint Notes not visible on the map.

To use iHikeGPS NZ, “Location Services” in the Settings App must be on.

If you ever see “ Location Services Off in Settings App ” at the top of the My Location Page:

1. Start the Settings App.
2. Tap “Location Services”.
3. If Location Services is OFF, turn it ON.
4. Scroll Down to iHikeGPS NZ.
5. Turn the Switch ON.

Battery Life:

You can turn off several settings to reduce the iOS device's drain on its battery when you are using iHikeGPS NZ on a long hike. Adjust the following settings in Apple's “Settings” App:

• Tap “Wi-Fi”, then Turn off Wi-Fi.
• Tap “General”, then tap “Bluetooth”, turn Bluetooth off.
• Tap “General”, then tap “Network”, turn off “Enable 3G” and “Cellular Data”. (Turn these back on if you need to download a map.)
• Tap “iCloud”, then tap “Documents & Data”, turn off “Use Cellular”.
• Tap “Mail, Contacts, Calendars”. Tap “Fetch New Data”. Turn off “Push” and tap “Manually”.
• Tap “Store”, then turn off “Use Cellular Data”.
• Tap “Brightness”, then turn down the screen brightness to the lowest acceptable level.

Also:

• Plug the iOS device into a car charger on your way to the trailhead so that you start the hike with a completely charged battery.
• On the Track Page, select “Always”. Put the iOS device to sleep when you are not looking at it. When you stop for lunch or to enjoy the views, on the Track Page select “Off”.
  (Don't forget to turn Track Recording back on before resuming your hike.)

If you follow all the steps, you may be able to record tracks for about 10 hours of actual hiking. Use an external battery pack to extend this time.

We Listen to You:

Question or Suggestion?   lwjames@iHikeGPS.com   00 + 1* 303 258 0576

Safety:

This iOS App must not be relied on as any part of a primary means of navigation. It must not be used in a way that safety or property depends on its successful operation. Always carry a compass and a paper map as a backup. Don't run your battery down so far that you can't make an emergency call if needed. James Associates Inc. accepts no liability, including incidental or consequential damages, for any injury or damages that may occur from the use of iHikeGPS NZ.
